Informasi Umum

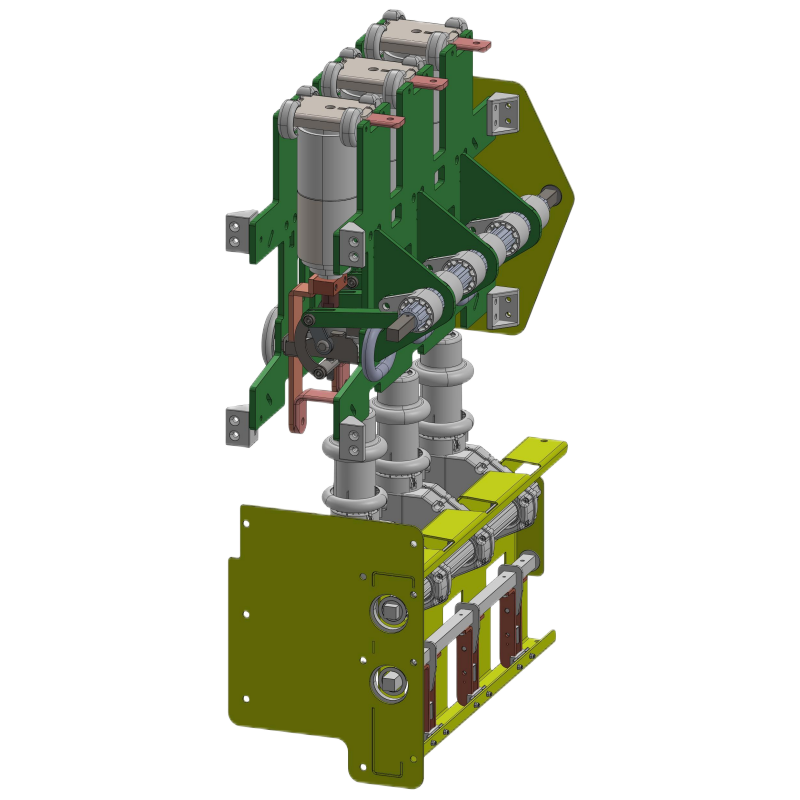

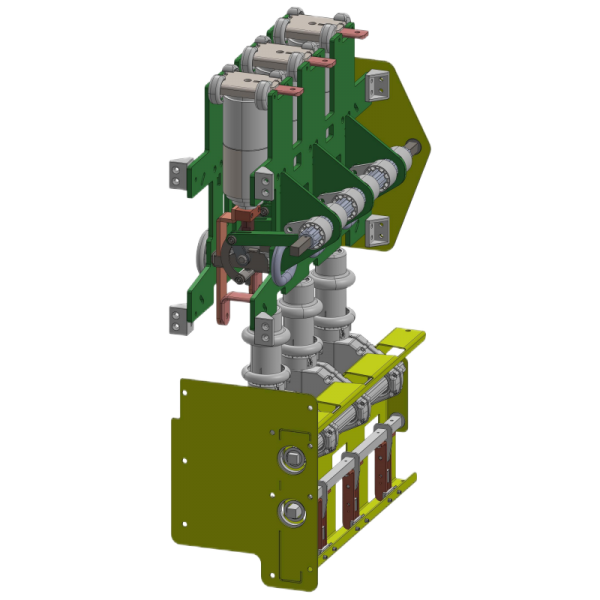

SF6 40.5kV-630A Fully insulated and fully sealed GIS high-voltage switch, suitable for 35kV-40.5kV transmission and distribution system control and protection, used to split the load current, short circuit current. The modular design is characterized by compact structure, good breaking performance, high reliability, long life, full insulation, maintenance-free, small footprint, and can be widely used in industrial, civil ring networks and terminal power supply networks. Especially suitable for small secondary distribution power stations, opening and closing stations, industrial and mining enterprises, airports, railways, highways, subways, business districts, living quarters, wind power, optoelectronics and other fields.
Kondisi Lingkungan Penggunaan
Lokasi Pemasangan: Di dalam tangki gas.
Suhu sekitar (℃): -45~+40.
Ketinggian (m): ≤2000.
Kelembaban udara (%): Rata-rata harian tidak lebih dari 95%, dan rata-rata bulanan tidak lebih dari 90%.
Intensitas seismik: ≤8 derajat

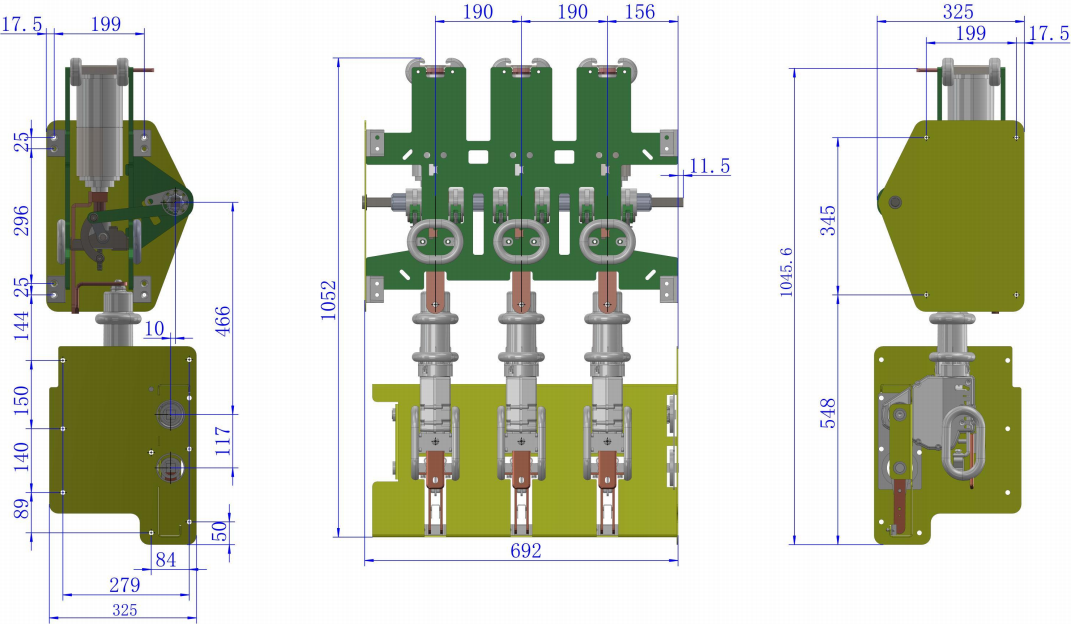

Dimensi Struktur dan Instalasi
◆ Kustomisasi Khusus
Parameter di atas adalah data tipikal; jika gaya yang ada tidak memenuhi permintaan spesifik Anda, silakan hubungi kami untuk desain khusus. Kami memiliki keterampilan pengembangan dan produksi kustomisasi pribadi yang signifikan, memungkinkan kami memberikan solusi khusus kepada pelanggan di seluruh dunia.
