24kV630A π قسم ٹینگیبل فور سرج اریسٹر

عمومی معلومات

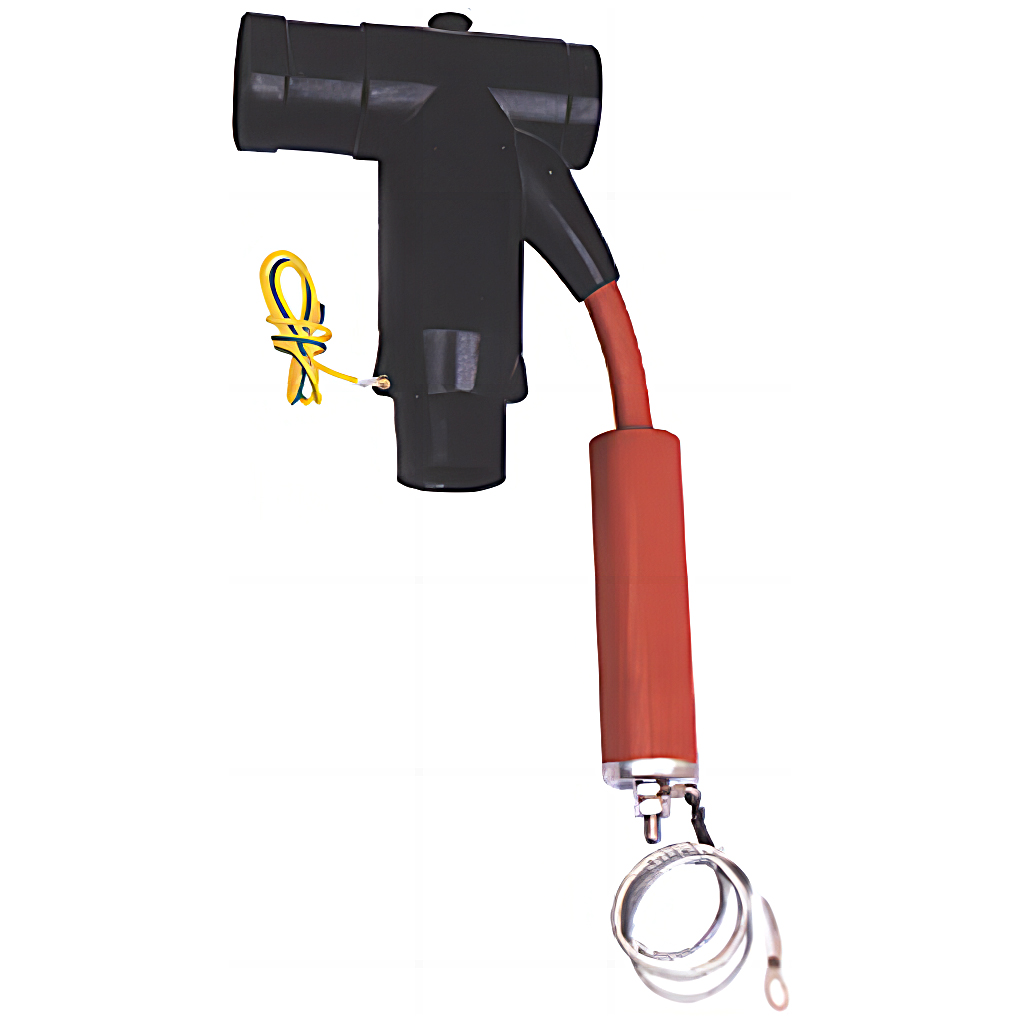

π type tangible connector is used in ring network before the ark, cable branch of the box or box become main system ring net system, as the in and out cable connections. Can be connected to630 A junction and through after shall touch joint combination to creating more connected circuit.

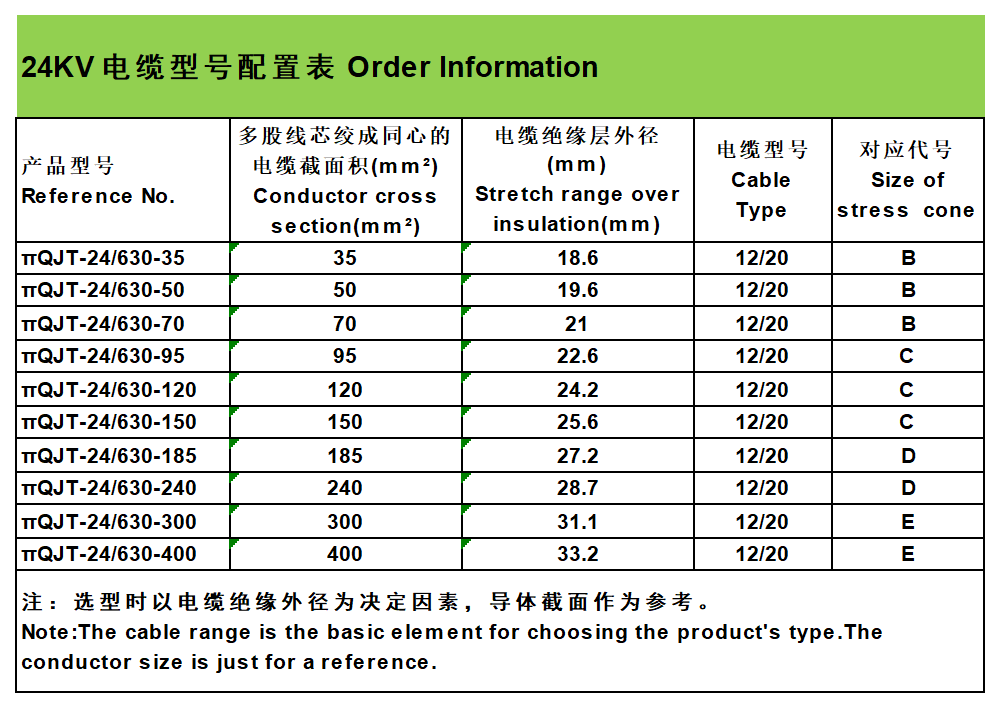

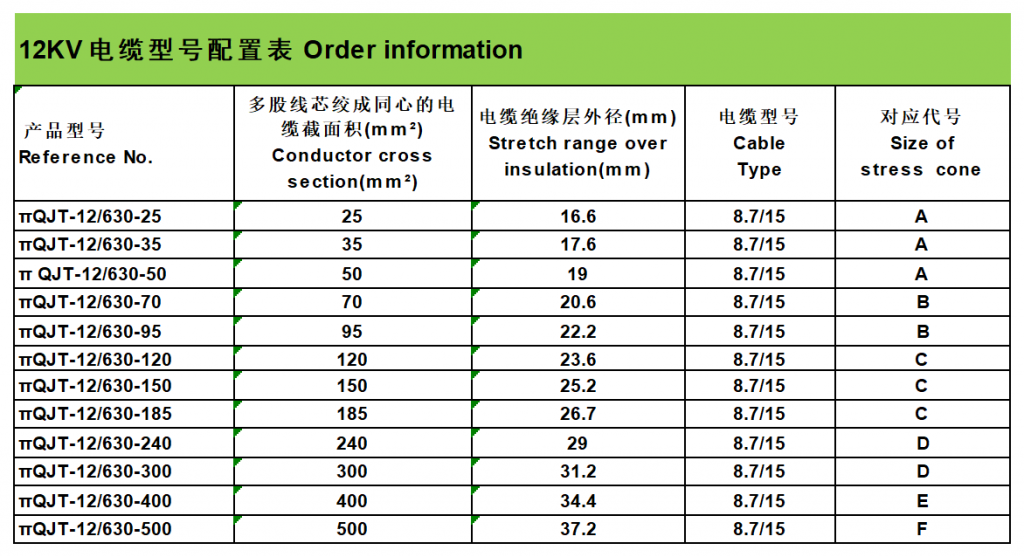

The rated current of π type tangible connectoris 630A , apply to 25-300mm XLPE’power cables of the section.
