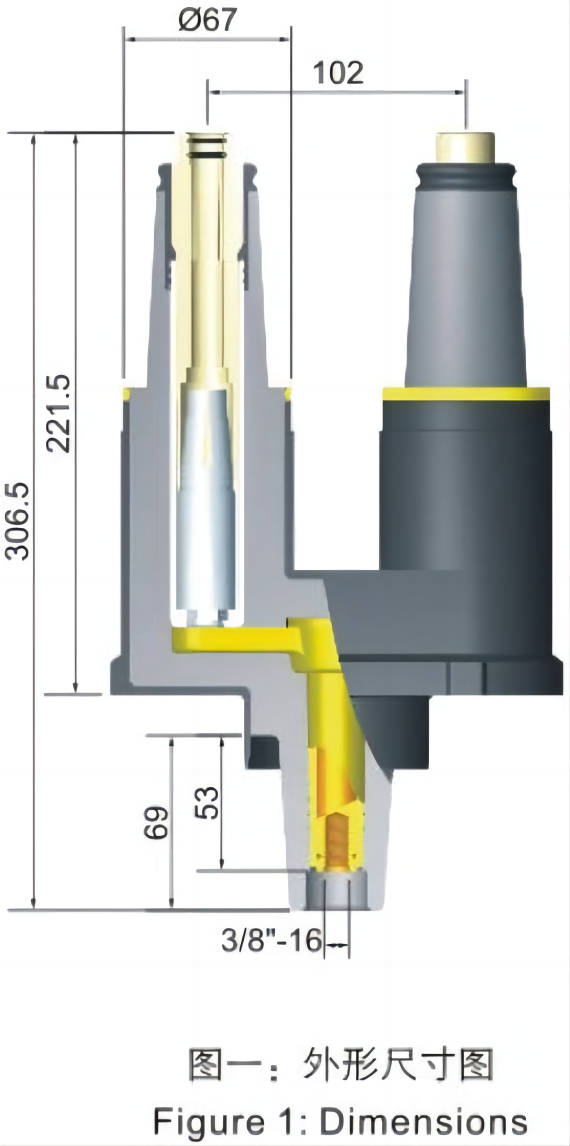

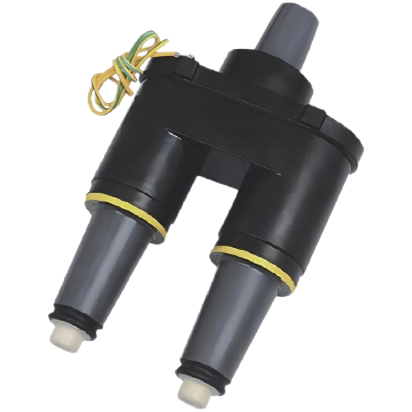

STT-24kV-200A Double-pass Casing Connector

General Information

24kV 200A Double-pass casing connector is used to provide dual bushings from a single apparatus bushing well. It makes converting radial-feed transfor- mers to feed thru transformers and adding in-line arrester protection both easy and practical. Its patented, built-in torque limiting ratchet prevents operators from a- ccidentally breaking bushing well studs during installation.

The 200A Double-pass casing connector for connecting underground cable to distribution power system of pad-mound transformer, surrounding power supply branch box, using together with this is: loadbreak elbow connector elbow surge arrester and apparatus bushing.

The loadbreak elbows are molded using high quality sulfur-cured insulating and semi-conducting EPDM rubber, When mated with comparably rated products, the insert provides a fully shielded and submersible loadbreak apparatus connection.

The Double-pass casing connector latch indicator ring, located on the circumference of the bushing’s collar, eliminates the guesswork of loadbreak elbow installation on the bushing interface. The bright yellow ring provides immediate feedback to determine if the elbow is properly installed on the bushing. if the yellow ring is completely covered by the loadbreak elbow, it is fully”latched,” if the ring is visible, the elbow can be installed correctly before any problems can occur.
