APPLICATIONS

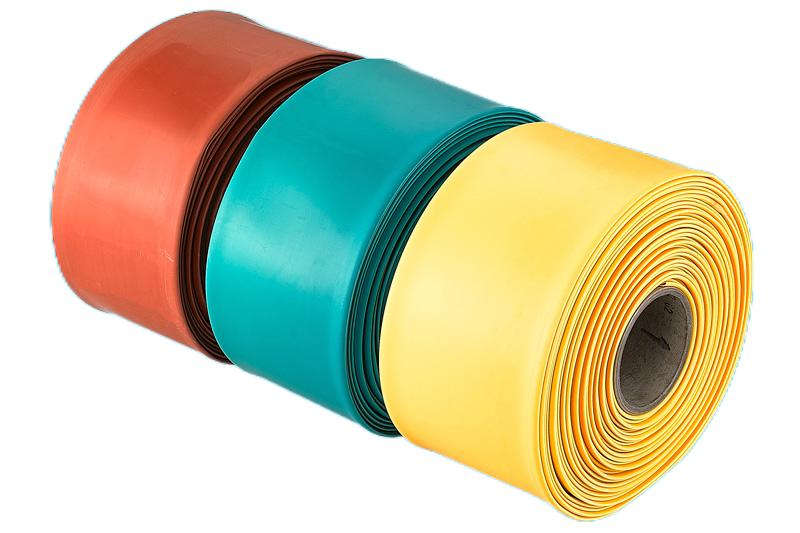

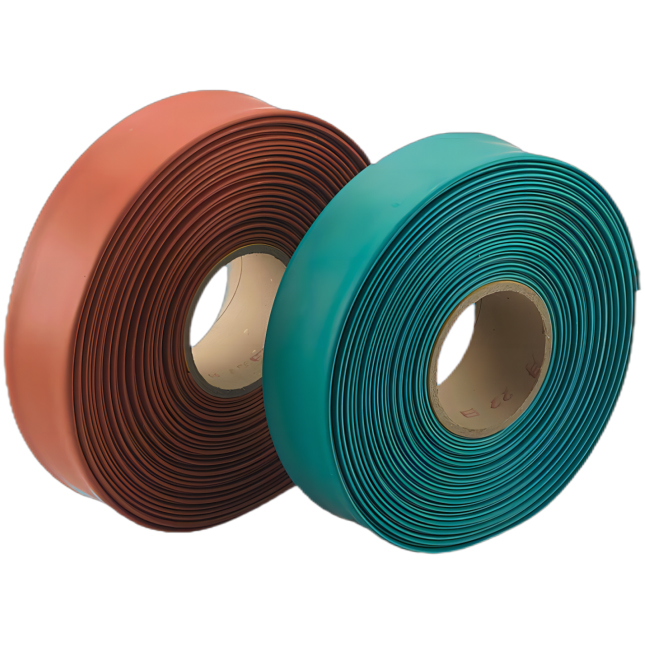

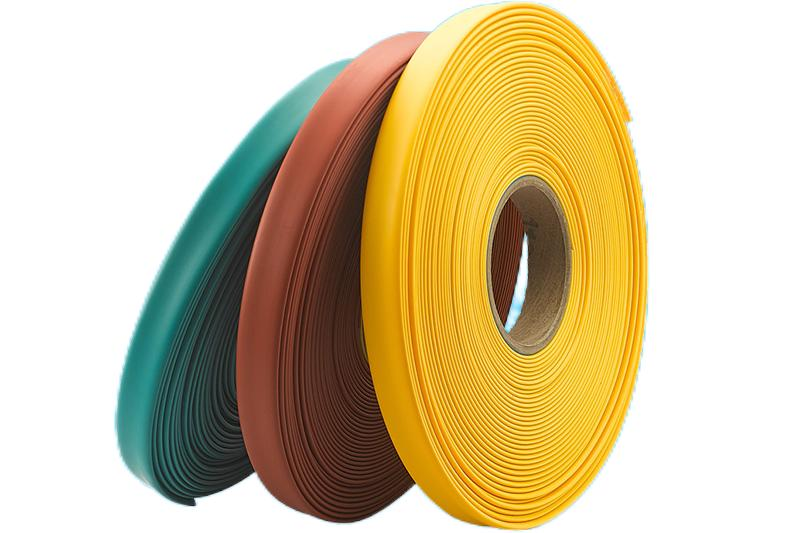

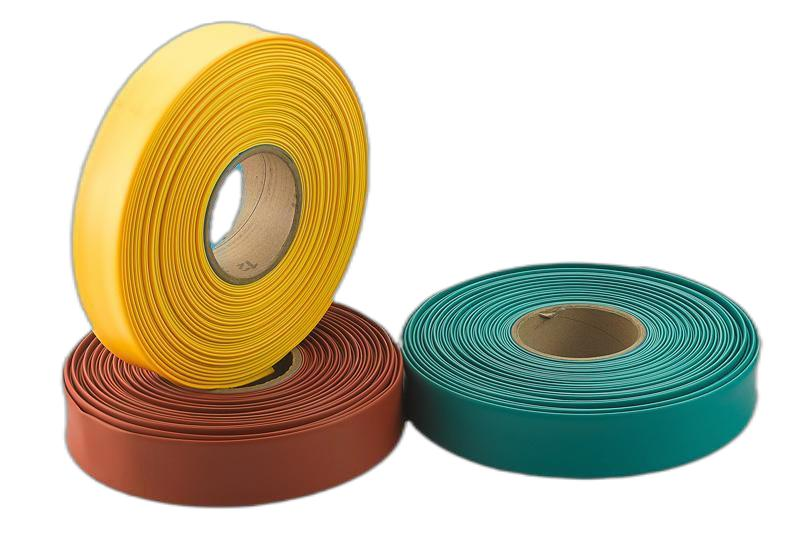

1.5 busbar insulating heat shrinkable tubing is made of polyolefin. The flexible material make it very easy for the operator to process bent busbars. The environmental friendly polyolefin material can provide reliable insulation protection up to 10 kV, avoiding the possibility of flashovers and accidental contact. The use of HB1.5 to cover busbars can reduce the space design of the switchgear and lowers the cost.

APPROVALS / SPECIFICATIONS

IEC60060-1

OPERATING TEMPERATURE RANGE

a, Continuous operating temperature: -45℃ ~ 105℃.

b, Minimum shrink temperature: 50℃.

c, Minimum full recovery temperature: 125˚C.

COLOR

Standard color: red, (Busbar width will vary depending on the design of the manufacturer. The recommended size is for reference only.)

a, Shrink ratio: 2.5:1.

b, Flexibility and corrosion resistance.

c, Excellent chemical resistance and insulation performance.

The 10KV high-voltage insulated busbar heat shrinkable tube is made of environmentally friendly polyolefin heat shrinkable material cross-linked by high-energy electron beam bombardment. It has excellent flame retardancy, insulation and thermal stability, and can provide high insulation strength and electrical resistance. Carbon trace performance. It limits environmentally harmful substances such as PBB, PBBD, PBBE and heavy metals. It does not produce toxic gases and harmful substances when burned. It is suitable for anti-corrosion and insulation protection of busbars and electrical equipment. It has passed the certification of Wuhan High School and West High School. Products are widely used in the power industry, communications, automobiles, ships, aircraft manufacturing and other fields.

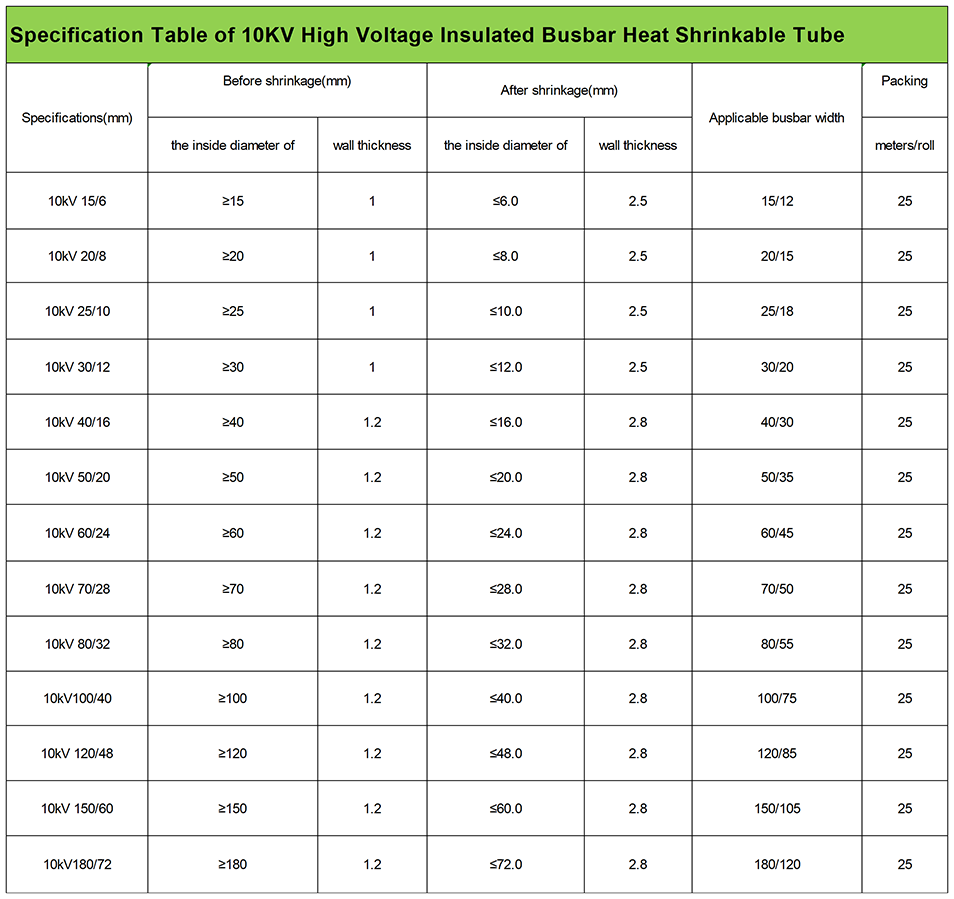

Specification Table
