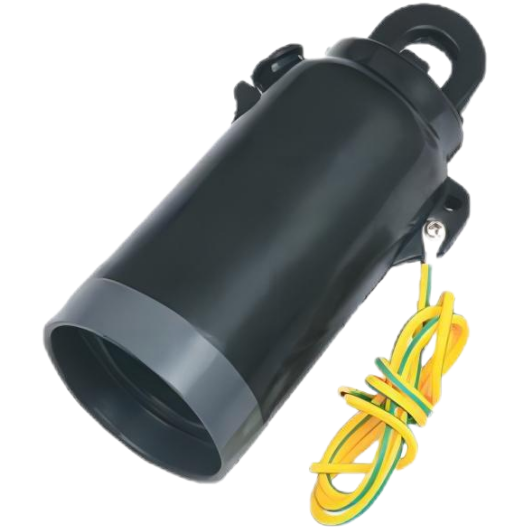

JYM-24kV-200A Insulated Protective Cap

General Information

24kV-200A insulated protective cap is an accessory device designed to electrically insulate and mechanically seal loadbreak bushing interfaces. When mated to a loadbreak product and the drain wire is attached to ground, the Insulated Protective Cap provides a fully shielded. submersible insulating cover for energized bushings.

The Insulated Protective Cap can be used for permanent or temporary install ation on 200A bushings, junctions or insulated standoff bushing.

Product Structure

1、INSULATION: High quality, peroxide-cured EPDM rubber formulated, mixed and molded in-house for consistent and reliable field performance.

2、SEMI-CONDUCTIVE SHIELD: High quality EPDM rubber provides protective dead front shield that make sure they have grounding.

3、GROUNDING EYE: Three tabs molded into a semi-conductive shield for the attachment of a ground wire to maintain dead front safety.

4、PULLING EYE: Stainless steel reinforced for positive shotgun stick switching operations.
