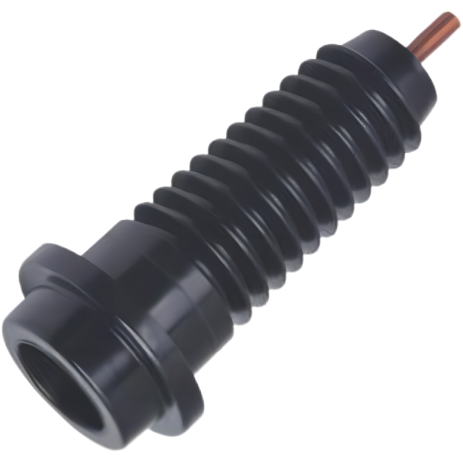

JCTGZ-15kV-200A Insulated Bushing Extenders

General Information

15kV 200A insulated bushing extenders designed for transformers, outdoor surrounding cable supply cabinet and switch cabinet. Insulated for the 200A outgoing line. 200A 15kV Insulated Bushing Extender connect with single pass bushing connector, two-way bushing connector and single pass bushing connector for surge arrester.

The Bushing Well is molded using high quality insulating material EPDM, when mated with comparably rated products, it provides a fully shielded insulating connection.

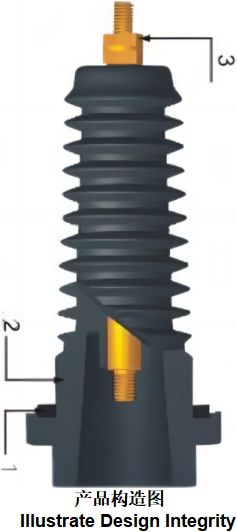

Product Structure

1. Sealing ring groove: used to place sealing rings to effectively isolate and seal.
2. The body of the extended sleeve holder: made of epoxy resin through the APG process, has good mechanical and electrical properties.
3. Conductive rod: The copper conductive rod treated with special technology can be stably combined with epoxy resin and has good conductivity.
