DBG-15kV-200A Pared simple

Información general

The Single-wall is designed to be installed in the parking stand mounted on a transformer or other apparatus. It is used together with the cable accessories such as: elbow connector elbow surge arrester and the other 200A loadbreak Accessories. A grounding lug is provided on the stand off bushing bracket for attachment of a drain wire to ensure dead front construction. When mated with a comparably rated product, the insulated stand off bushing provides a fully-shielded, submersible, separable connector for energized operation.

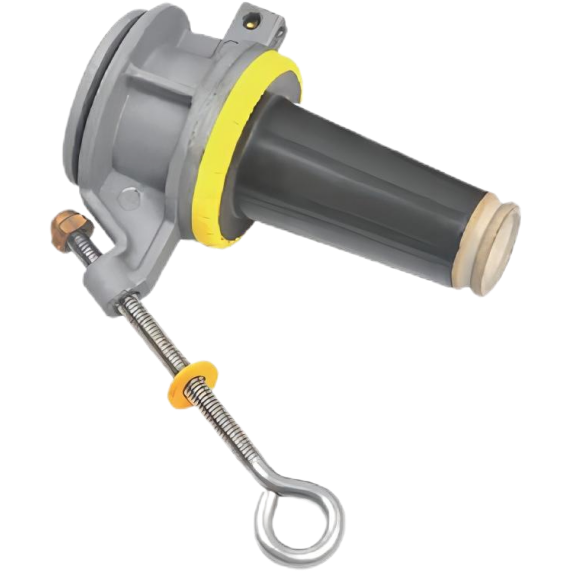

The Single-wall has a stainless steel eye bolt with a brass pressure foot. The molded EPDM rubber body is bolted to a stainless steel base bracket using a galvanized steel hold down ring. A completely stainless steel bracket assembly is available for extremely corrosive environments.
